Product Description

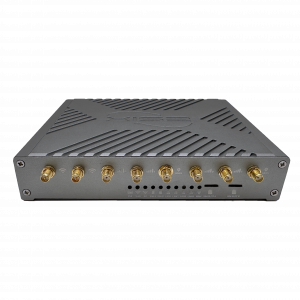

Xatellite B5 is an industrial grade ruggedized indoor single 5G+fixed line CPE with an ENOS system. It is one of the components from the SDM platform, offering routing and IPfiber tunnel capabilities. It can be deployed for IOT terminal devices, or provide a seamless data interconnection via IPfiber to help enterprises build their own private network simplistically.

Product Features

• 3GPP Release 16 NSA/SA operation Sub-6 GHz

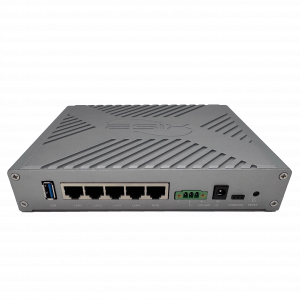

• 5×Ethernet 10/100/1000M, 1xUSB
• 2×Nano Sim Slots (Single Pass, Single Standby)
• Dual band 802.11 IEEE 802.11a/b/g/n/ac/ax WiFi
• Support Multi-wan load balancing or Failover or Parallel Transmission
• Across network Overlay pure L2 or L3 tunnel
• Support terminal control platform management

Packing List

• Xatellite B router body
• Single 5G Module inside
• SMA Wi-Fi Antenna (EA-S-W) × 2
• SMA 5G/4G/GNSS Antenna (EA-S-5) × 4
• AC/DC Adapter, 24V DC/2A – DC Jack(EP-D-24D) × 1
• *PoE+ Injector is not included
• 1st year SDM-Centre 500 license x 1
